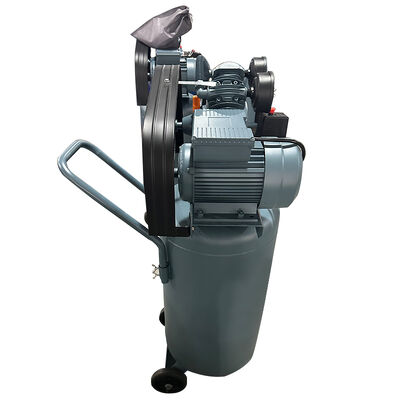

A space-saving vertical piston compressor that plugs into a normal wall socket — belt-driven durability and a 100-litre reserve in a footprint smaller than a bar fridge.
Key figures for the 1.5kW belt driven air compressor with 100L vertical receiver.
| Model No. | 1.5kW-100L Vertical Belt-Drive Piston Compressor |
|---|---|
| Rated Power | 1.5 kW (2 HP) |
| Working Pressure | 8 bar (116 PSI) |
| Air Displacement | 170 L/min (6 CFM) |
| Tank Capacity | 100 L vertical tank |
| Voltage / Frequency | 220V / 50Hz, single-phase |
| Compression Type | Piston, oil-lubricated |
| Starting Mode | Direct on-line starting |
| Cooling | Finned cylinders, belt-driven fan |
| Control | Pressure switch auto start/stop, regulator, twin gauges |
| Safety | Safety relief valve, tank pressure gauge |
| Mobility | Carry handle and wheels for workshop repositioning |
Values are for reference. Dimensions, net weight and noise level vary by configuration — confirm against the factory test report before ordering.
The 1.5kW belt driven air compressor packs a genuine 100-litre receiver and a full belt-drive piston pump into a compact vertical footprint. It runs on 220V single-phase power — the same outlet as a household socket — so it works in garages, small workshops and shops where three-phase supply simply isn't available.
The vertical tank is the space-saving trick: 100 litres of stored air occupies barely half a square metre of floor. That reserve matters at this size. A bigger tank means the motor cycles on and off less often, the pressure stays steadier while you work, and the pump runs cooler — which is exactly what gives belt-driven piston pumps their long service life.
With 170 L/min displacement at 8 bar, this machine covers the everyday air demand of a small workshop: impact drivers, ratchets, spray guns, blow guns, tire inflation, staplers and hobby or repair work. Belt drive keeps the pump at its optimal speed and makes every wear part — belts, valves, rings — a standard, inexpensive, field-replaceable consumable.
Why the belt-driven vertical format works so well at this size.
Single-phase 1.5kW motor starts from an ordinary wall socket. No three-phase wiring, no converter, no electrician — plug in and work.
Full-size reserve in half the floor area. Fewer motor start/stop cycles mean steadier tool pressure and a cooler-running pump.
The belt transmission lets the pump run at its designed low speed, reducing heat and wear — the classic reason belt-driven piston pumps outlast direct-drive hobby units.
Cast cylinders with deep cooling fins and a belt-driven fan dissipate heat efficiently, supporting longer continuous work sessions.
Pressure switch starts and stops the motor automatically between set points; the regulator and gauges let you dial in exactly the pressure each tool needs.
Carry handle and wheels for repositioning around the workshop. Belts, valves and oil are standard consumables any user can replace with hand tools.
What different buyers get from working with us on this platform.
Real 100L capacity and belt-drive durability at a hobby-compressor price point — one machine that covers most repair and spray work.
Compact vertical packing means more units per container, lower freight per piece and fast-moving retail demand in the 2HP class.
Private labeling, custom tank colors and packaging are supported; a natural companion SKU alongside our larger belt-driven industrial models.
Simple mechanical layout keeps rental fleets serviceable in-house — belts and valves are consumables, not warranty events.
220V plug-and-play operation with the safety of a guarded belt drive and certified relief valve — appropriate for non-specialist operators.
We stock complete spare-parts kits (belts, valve plates, gaskets, gauges) and ship them with the machine or on demand.
Yes. The 1.5kW single-phase motor draws modest current at 220V/50Hz and starts directly on-line. A standard grounded outlet on its own circuit is sufficient — avoid sharing the socket with high-draw appliances.
A small pump fills slowly, so the tank does the buffering. With 100 litres stored at 8 bar, short bursts from spray guns or impact tools come from the tank, not the pump — steadier pressure, fewer motor starts, less heat.
As a guide: spray guns and blow guns draw 100–200 L/min, impact wrenches and ratchets 150–250 L/min. At 170 L/min, this compressor supports intermittent use of one air tool at a time plus inflation — typical small-workshop duty.
For service life, yes. Belt drive runs the pump at lower speed with less heat, absorbs shock loads, and turns belts into cheap, user-replaceable consumables. Direct-drive hobby units throw away the whole pump when it wears.
Check the oil level and drain tank condensate regularly; clean the intake filter; inspect belt tension; change oil per the schedule. All standard piston-compressor tasks, doable with basic tools.
Compact carton with protected gauges and valve, suitable for LCL or full-container loading. The vertical format keeps volume low — a real advantage for distributors managing freight cost.
Yes — OEM branding, custom tank color and private-label packaging are available, and the model pairs naturally with our larger belt-driven range for a complete catalogue
