Spray Painting Air Compressor High Flow Coating Unit 220V 50L Piston Machine XB180

1 Piece
MOQ
Negotiation
Price
Spray Painting Air Compressor High Flow Coating Unit 220V 50L Piston Machine XB180
Features Gallery Product Description Chat Now
Features
Specifications
Power: 5000W
Voltage: 220V
Compressor Type: Oil-free Piston
Air Flow: 720 L/min
Pressure: 10 Bar
Tank Capacity: 50L (2 X 25L)
Speed: 2800 RPM
Cooling: Air-cooled
Application: Spray Painting And Heavy Coatings
Warranty: 1 Year
Highlight:

spray painting oil free air compressor

,

50l oil free compressed air

,

high flow air compressor oil free silent

Basic Infomation
Place of Origin: Nantong, Jiangsu, China
Brand Name: SHJPAI
Certification: CE
Model Number: SP-25L*2-3
Payment & Shipping Terms
Packaging Details: carton box with foam protection
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 500 Pieces per Day
Product Description

Spray Painting Air Compressor High Flow Coating Unit 220V 50L Piston Machine XB180

Nantong Shengqiang

Spraying Oil Free Air Compressor — 10 Bar, Dual 25L Tanks, 720 L/min for Thick Coatings

Built for real stone paint and heavy coatings: 720 litres per minute at a full 10 bar keeps a spray gun atomising evenly from the first pass to the last, without fading at the end of a stroke.

Spraying DutyDual 25L Tanks10 Bar720 L/min5000W 220V
Spray Painting Air Compressor High Flow Coating Unit 220V 50L Piston Machine XB180

Specifications at a Glance

Model SP-25L*2 (XB180-2)
Power 5000W
Voltage 220V
Air Flow 720 L/min
Max Pressure 10 Bar
Tank Capacity 50L (two 25L receivers)
Speed 2800 RPM
Motor Oil-free piston, air-cooled
Typical Use Spray painting, viscous coatings
Warranty 1 year

Steady Pressure Where Ordinary Compressors Give Up

Viscous materials are the real test of a spraying compressor. The SP-25L*2 holds a steady 720 litres per minute at up to 10 bar, so real stone paint, heavy primer and thick top coats leave the gun in an even fan instead of spitting as the pressure falls.

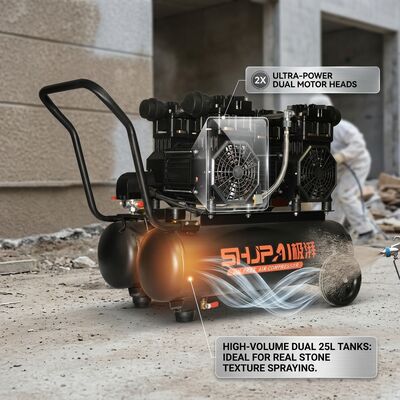

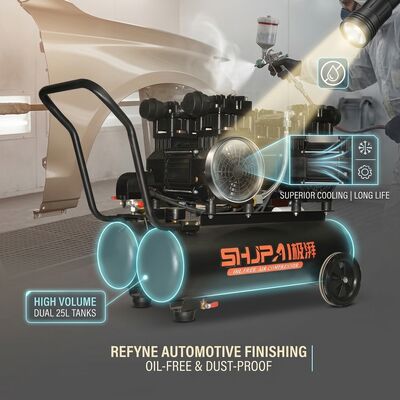

Two 25-litre receivers sit between the pump and the gun as a buffer. When the trigger is released the tanks refill in seconds, so the next pass begins at full pressure and the finish stays consistent across a whole wall.

Because the piston set runs oil-free, there is no oil carry-over to spot a freshly painted surface — the detail that matters most on light colours and high-gloss work.

Built for the Gun, Not Just the Tank

Flow That Keeps Up with a Fast Hand

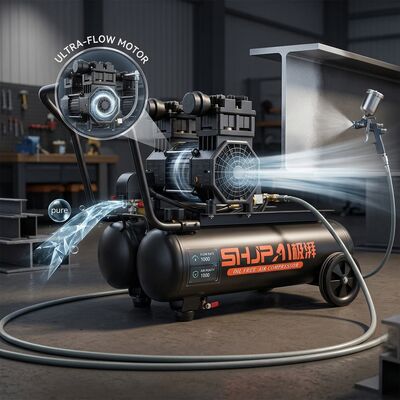

A 5000W motor turning at 2800 RPM drives the pump through a large-bore line, giving enough air to hold a wide spray pattern without the gun fading.

Smooth Pressure for Thick Materials

The twin receivers even out the pulses that make thin compressors spray unevenly, while a regulator at the outlet lets a painter dial the exact pressure a coating asks for.

Clean, Oil-Free Air

No oil mist means no contamination on light colours or high-gloss finishes, where a single oil mark would mean a re-spray.

Made for Long Site Days

Air-cooled and built to run continuously, the machine suits a full shift of spraying rather than short bursts.

Why Buy From Nantong Shengqiang

  • 16+ years manufacturing air compressors, from 15L portables to 320L industrial units, with 300,000-unit annual capacity.
  • Supplying major brands including RILAND, JASIC and LAUNCH, with 90%+ of output exported.
  • CE certification, export-grade packaging, and common service parts kept in stock.
  • OEM/ODM support for voltage, tank layout, colour and branding.

Frequently Asked Questions

Will it run a pressure-feed spray gun?

Yes. The high flow and steady pressure suit pressure-feed and gravity guns alike.

Can two painters share one unit?

It supports one gun at full flow continuously. For two guns running at once, pair it with an auxiliary receiver.

What about maintenance between jobs?

Drain the receivers, check the intake filter and confirm the regulator reading — no oil changes are required.

Which coatings is it suited to?

Real stone paint, textured and viscous coatings, primers, lacquers and general architectural spray painting.

Do you offer spare parts?

Yes. Pump heads, solenoid valves, gauges and ball valves are held in stock and can ship with future orders.
