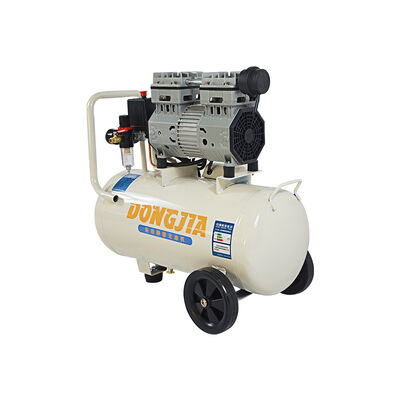

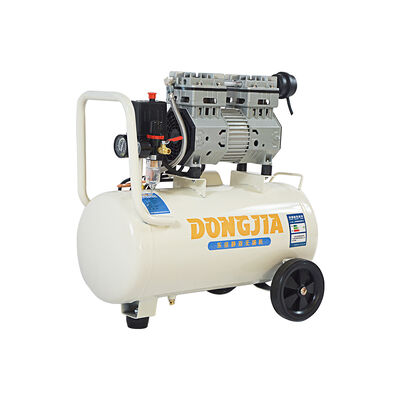

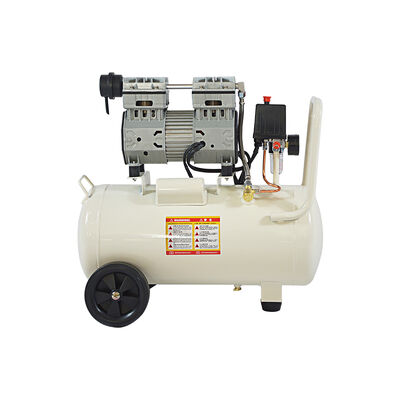

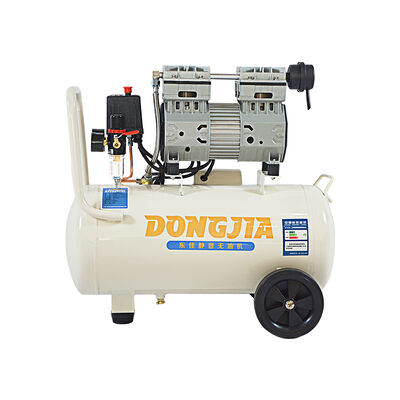

30L Tank 850w Motor Mini Oil Free Silent Portable Air Compressor

1
MOQ
Negotiation
Price
30L Tank 850w Motor Mini Oil Free Silent Portable Air Compressor
Features Gallery Product Description Chat Now
Features
Specifications
Power: 850W
Type: Air Compressor
Portability: Portable Or Stationary Options
Noiselevel: Low Noise
Lubrication: Oil-Free
Pressure: 8BAR
Airflowcapacity: 60L/MIN
Tank: 30L
Highlight:

mini oilless air compressor

,

30L silent oilless air compressor

,

850w portable oil free compressor

Basic Infomation
Place of Origin: CHINA
Brand Name: DONGJIA
Certification: CE
Model Number: 35-850-30L
Payment & Shipping Terms
Packaging Details: carton box
Delivery Time: 5-8working days
Payment Terms: T/T
Supply Ability: 500pcs per day
Product Description

30L Tank 850w motor Mini Oil-Free Silent Portable Air Compressor

30L Tank850W8 bar60 L/min1400 RPM

35-850-30L Oil Free Air Compressor

Compact, energy-efficient and 100% oil-free — steady clean air for dental chairs, laboratory instruments, workshops, and OEM brands.

30L Tank 850w Motor Mini Oil Free Silent Portable Air Compressor

Technical Specifications

35-850-30L detailed parameters.
Model No. 35-850-30L
Product Type Oil free air compressor
Rated Pressure 8 bar / 116 psi
Displacement 60 L/min
Motor Speed 1400 R.P.M
Voltage 220V / 50Hz
Tank Capacity 30L horizontal tank
Rated Power 850W
Dimensions 62 × 27 × 56 cm
Net Weight 24 kg
Low-Voltage Startup 175V supported
Operating Temperature -30℃ to 40℃
Insulation Class Class F enameled wire
Protection 5-fold motor protection + built-in thermal protector
Applications Dental, laboratory, workshop, painting, inflation, OEM
Values are for reference; final specifications may vary by regional configuration. Custom voltage, plug, color, and private-label branding are available on request.

Product Introduction

Efficient, low-power oil-free compressed air — the economical choice for clinics, labs and light workshop duty.

The 35-850-30L oil free air compressor pairs an 850W oil-free motor running at a quiet 1400 R.P.M with a 30L horizontal tank, delivering 60 L/min of clean air at 8 bar. The larger 30L reserve means the motor runs fewer start/stop cycles, keeping noise low and extending service life — perfect for single-chair dental rooms, laboratory benches, airbrushing, inflation, and light pneumatic tools.

Because the compression chamber is 100% oil-free, the output air carries zero oil aerosol — no contamination risk for patients, samples, or finishes, and no oil changes or waste oil disposal ever. The 5-fold protection system, Class F insulation, and optimized thermal management keep the failure rate below 0.02%, with dependable startup at just 175V and stable performance from -30℃ to 40℃. At 24 kg with a carrying handle and wheels, it moves easily between rooms and job sites, and its low 850W draw keeps running costs down.

Features & Characteristics

Engineered reliability for demanding environments — from quiet clinics to cold workshops.
⚡

175V Low-Voltage Startup

Reliable motor start even when incoming voltage drops or fluctuates. Ideal for older buildings and unstable power grids.

🌡️

Extreme Temperature Range (-30℃ to 40℃)

Tested and proven for diverse operating conditions, from unheated winter workshops to hot summer job sites.

🛡️

Ultra-Low Failure Rate (<0.02%)

A 5-fold protection system drastically reduces motor burnout risk, extending service life and lowering warranty costs.

🔥

Optimized Thermal Management

Cold-rolled steel motor for slower temperature rise; premium aluminum housing for faster heat dissipation; Class F enameled wire with higher melting-point insulation; built-in thermal protector for automatic overload protection.

⚙️

Seamless Cylinder Sleeve

Minimized friction delivers smoother piston travel, higher efficiency, lower noise, and longer wear resistance.

🔋

Energy-Saving 850W + 30L Reserve

Low power draw cuts electricity costs, while the 30L tank stores more air and reduces motor cycling for quieter, longer-lasting operation.

Why Choose Us

Purpose-built solutions for the buyers who matter most to your business.

Dental Clinics

Clean, oil-free air protects handpieces and patients. The 30L reserve quietly supports single-chair treatment all day.

Laboratories

Stable 8 bar output and oil-free air protect analytical instruments and sensitive samples from contamination.

Wholesalers & Trading Companies

Compact 24 kg unit with universal 220V design simplifies shipping, stocking, and after-sales support worldwide.

Brand Owners & OEMs

Low failure rate, low energy draw, and modular construction make private-label programs easier to support and more profitable.

Home Improvement & Workshop

Handle-and-wheels portability for brad nailers, staplers, inflators, airbrushing, and hobby spray work.

Lower Total Cost of Ownership

No oil, no oil changes, no oily condensate disposal — and 850W of efficient power keeps electricity bills low.

Frequently Asked Questions

Quick answers for buyers and distributors.
Is this compressor really oil-free?

Yes. The 35-850-30L uses an oil-free piston design. There is no lubricating oil in the compression chamber, so output air contains zero oil contamination — safe for dental, laboratory, and finishing applications.

What can an 850W / 30L oil free air compressor run?

It comfortably powers dental handpieces for a single chair, lab air tools, airbrushes, brad nailers, staplers, tire inflators, and small spray guns. The 30L tank provides a longer air reserve between motor cycles.

Why choose 1400 RPM instead of a faster motor?

A lower 1400 R.P.M speed means less mechanical wear, lower noise, and cooler running temperatures — ideal where quiet, long-duration operation matters more than maximum fill speed.

Does it work in cold climates or low-voltage buildings?

Yes. The 175V low-voltage startup ensures reliable starting under weak power, and the unit is rated for -30℃ to 40℃ with cold-rolled steel motor construction and Class F insulation.

Do you support OEM / private label?

Yes. We support custom branding, color, voltage, plug type, packaging, and user manuals. Contact us with your target market and order quantity for a tailored quotation.

What maintenance does it need?

Very little: drain tank condensate periodically, keep the air intake clean, and check hose connections. Being oil-free, there are no oil changes and no waste oil disposal — ever.

Need a quote for the 35-850-30L?

Tell us your market and quantity — we reply within 24 hours.

Request a Quote
